40W LED Panel 1200x300 SURFACE MOUNT 3600 Lumen 4000k 3 Year Warranty (Minimum Order of 6)

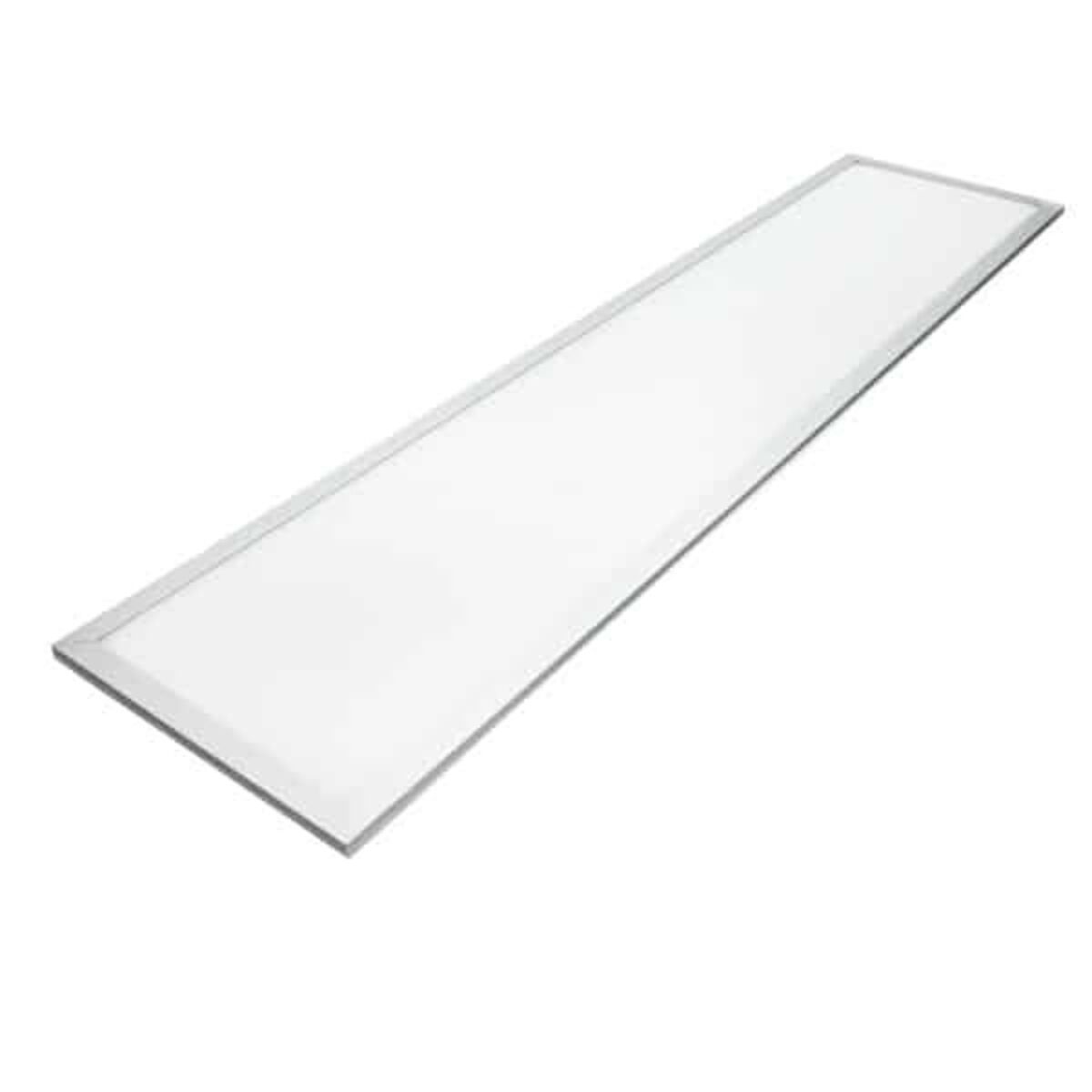

• 40W 1200mm x 300mm SURFACE MOUNTED  Rrecessed  LED luminaire with an opal diffuser
• Integarl Frame
• 90 Lumen per Watt 3600 Lumen
• Low Glare, Flicker Free
• Optional 0-10V Dimmable driver, ,
• Opal Body aluminium profile, white finish
• 1200x300x25mm, 1.5Kg
• 3600 lm (ta=25°C)
• 90lm/W,
• CRI (Ra): 80+, Micro-prismatic diffuser, UGR≤19
• 4000 K
• LED lifetime: 50,000 Hours
• Protection class IEC: II. Ingress protection code: IP20. Impact resistance: IK02. EEC: A+
• TUV Certified

• Weight - 1.5 kg
• Dimensions - 150 × 30 × 2 cm
• Standard - LED panel without emergency pack
• Emergency Panel - LED panel with 3H emergency power pack, maintained or non-maintained

• Mains voltage: 220-240V, 50-60Hz
• Power factor: >0,90 Light source:
• LED Light source included: Yes Light distribution type:
• Direct LED lifetime, h: 50000/L70B50 Operating temperature range, °C: ta 0…+35
• Protection class IEC: II Ingress protection code: IP40 (IP44 optional)
• Mechanical impact resistance: IK02 EEC: A+
• Installation: Fits 15-24mm exposed T-Bar ceiling 600x600mm. When the luminaire is fitted into a plasterboard ceiling, it is recommended to use recessed mounting kit (to be ordered separately).
• Cable, 0.1m, 2×0.75mm2 Environment: Indoor Application: Office, education, corridor, retail, public place

Product

• Length: 595 mm
• Width: 595 mm
• Height: 33mm
• Luminaire: LED

Available options:

• OP DALI Driver with DALI interface and switch-control dimming
• DALI LOOP Driver with DALI interface, switch-control dimming and doubled input terminals for looping the mains cables EM3B
• Emergency version 3 hours (best available technology) EM3A Emergency version equipped with an autonomous testing system, 3 hours EM3D
• Emergency version 3 hours with DALI interface WIE3-0.5m 3-pole “Wieland- Gesis classic” type or compatible connector with 0.5m cable WIE5D-0.5m 5-pole
• DALI “Wieland- Gesis classic” type or compatible connector with 0.5m cable Europlug-1.5m 2-pole “Europlug” type plug with 1.5m cable Europlug-3.0m 2-pole “Europlug” type plug with 3.0m cable QBX3-0.1m 3-pole quick connection box on 0.1m cable,
• Push-in terminal, 3x2x2.5mm2 IP44 IP44 protection degree T830 Colour temperature 3000K, CRI 80+ T840 Colour temperature 4000K, CRI 80+

Warranty:

5 years with approval from the manufacturer (3 years standard)
