£29.89
101 in stock

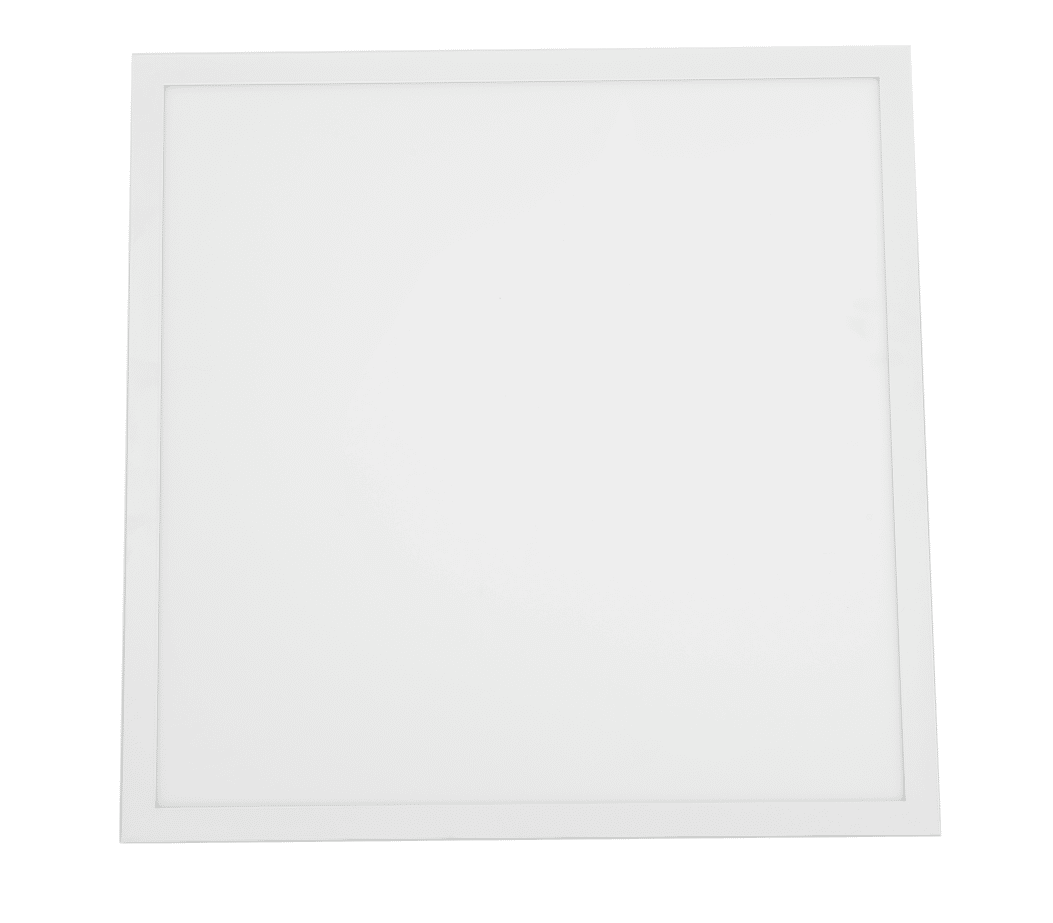

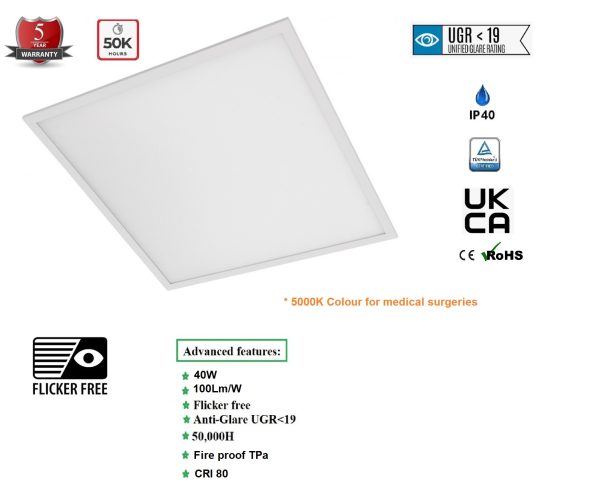

TUV certified recessed LED luminaire with an opal diffuser, uses superior Backlit LED Technology, glare free, flicker free, very homogeneous light distribution Diffuser: opal Body aluminium profile, white finish
595x595x33mm, 1.5Kg
4200 lm (ta=25°C)
105lm/W,
CRI (Ra): 80+, Micro-prismatic diffuser, UGR≤19
6000 K
LED lifetime: 50,000 h
Protection class IEC: II. Ingress protection code: IP44. Impact resistance: IK02. EEC: A+
TUV Certified
| Weight | 1.5 kg |
|---|---|
| Dimensions | 64 × 70 × 26 cm |
| Standard | Standard LED panel without emergency pack |
| Emergency Panel | LED panel with 3H emergency power pack, maintained or non-maintained |
Mains voltage: 220-240V, 50-60Hz
Power factor: >0,90 Light source:
LED Light source included: Yes Light distribution type:
Direct LED lifetime, h: 50000/L70B50 Operating temperature range, °C: ta 0…+35
Protection class IEC: II Ingress protection code: IP40 (IP44 optional)
Mechanical impact resistance: IK02 EEC: A+
Installation: Fits 15-24mm exposed T-Bar ceiling 600x600mm. When the luminaire is fitted into a plasterboard ceiling, it is recommended to use recessed mounting kit (to be ordered separately).
Cable, 0.1m, 2×0.75mm2 Environment: Indoor Application: Office, education, corridor, retail, public place
Product
Length, 595 mm
Width, 595 mm
Height , 33mm
Luminaire: LED
Available options:
OP DALI Driver with DALI interface and switch-control dimming
DALI LOOP Driver with DALI interface, switch-control dimming and doubled input terminals for looping the mains cables EM3B
Emergency version 3 hours (best available technology) EM3A Emergency version equipped with an autonomous testing system, 3 hours EM3D
Emergency version 3 hours with DALI interface WIE3-0.5m 3-pole “Wieland- Gesis classic” type or compatible connector with 0.5m cable WIE5D-0.5m 5-pole
DALI “Wieland- Gesis classic” type or compatible connector with 0.5m cable Europlug-1.5m 2-pole “Europlug” type plug with 1.5m cable Europlug-3.0m 2-pole “Europlug” type plug with 3.0m cable QBX3-0.1m 3-pole quick connection box on 0.1m cable,
Push-in terminal, 3x2x2.5mm2 IP44 IP44 protection degree T830 Colour temperature 3000K, CRI 80+ T840 Colour temperature 4000K, CRI 80+
Warranty: 5 years with approval from the manufacturer (3 years standard)
